PRODUCT OVERVIEW

The Reverse Osmosis Systems are engineered to economically produce high purity water by removal of dissolved minerals, bacteria, particles, and organic impurities. Each SDMRO machine is constructed using the highest quality components and materials for reliable operation and exceptional performance.

SYSTEM FEATURES

All membrane systems are manufactured in a skid / frame design providing for ease of installation with minimum floorspace requirement. Constructed of welded structural carbon steel tubing, finished with corrosion resistant epoxy paint coating. Stainless steel fastener hardware is standard for corrosion resistance.



CARTRIDGE PRE-FILTRATION VESSEL
Pre-filtration of the membrane feed is standard on all systems. Filter housing is constructed of 304 stainless steel or per client specifications. Filter cartridges are pure polypropylene with a 5.0-micron nominal rating.

SYSTEM PRESSURE PUMP
Standard pressure pumps are constructed 316 stainless steel housing with a glass filled noryl and lexan impeller Pumps are equipped with TEFC motors wired for 230 / 460 VAC voltage and rated for full load, continuous duty.



MEMBRANE PRESSURE VESSELS
All systems feature membrane pressure vessels constructed of fiberglass reinforced polyester (FRP) with 316 stainless steel side-entry feed / concentrate ports. Standard vessels have a white polyurethane finish. ASME code stamping is available on all pressure vessels.



MEMBRANE ELEMENTS
Standard reverse osmosis (RO) membrane elements are high rejection, thin-film composite (TFC) type in a spiral-wound configuration. Membrane elements are tested at 99.5% average salt rejection. All membrane elements carry a three-year warranty against defects in quality and workmanship.



INSTRUMENTATION
All systems feature a complete instrumentation package for optimal performance monitoring. Each of the following instruments are completely panel-mounted and pre-wired:
– Pre/Post cartridge filter pressure gauges
– RO feed/interbank pressure gauges
– Product/reject pressure gauges
– RO inlet/pump discharge pressure switches
– Product/reject electronic flow meters
– Product conductivity monitor
– System temperature indicator
– Pump run hour meter



SYSTEM CONTROL
Operations of the system are automatically controlled through a comprehensive programmable logic controller (PLC) package housed in a NEMA-4 industrial electrical enclosure. The control system also includes a pre-wired motor starter, operator switches / pushbuttons, and status / alarm indicator lights. Standard systems include the following isolated alarm conditions:
– Low inlet pressure
– High pump discharge pressure
– High RO product conductivity



SYSTEM PIPING AND VALVES
All membrane systems are completely pre-piped to the fullest extent and are installation ready. The following valves are provided as standard for accurate flow/pressure control and convenient operation:
– Automatic inlet valve to prevent water flow through machine during shutdown
– Pressure pump discharge throttle valve
– RO reject/recirculation flow control valves
– Automatic system flush valve for prevention of membrane fouling and scale formation
– Pre/Post cartridge filter housing isolation valves
– Inlet, product, and reject sampling valves
– Isolation valves and blind ports for use with membrane cleaning systems

SYSTEM OPTIONS



Machine Hardware
– FRP skid and frame assembly
– 316 stainless steel high pressure piping/valves
– Premium efficient pressure pump motor



Instrumentation
– Digital inlet feed-water pH monitor/controller
– Digital inlet feed-water ORP monitor/controller
– Inlet feed-water turbidity monitor
– Silt Density Index (SDI) test assembly
– High RO product pressure alarm/shutdown
– RO product divert valve
– Touch-screen operator control monitor
– RO Product Storage and Distribution Systems
– FRP and HDPE storage tanks with level controls

Pre-Treatment Systems
– Multi-media filters
– Activated carbon filters
– Water softener systems
– Inlet feed-water pH adjustment chemical addition
– Inlet feed-water anti-scalant chemical addition
– Inlet feed-water dechlorination chemical addition

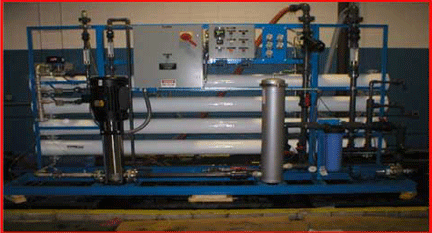

	Typical Front View of R.O Unit
